Wall Mounted Premium SureFlow - WM3, WM3SS, WM7, WM7SS

Features and Benefits
Integral 7 day programmable timer
Programmable filter change indicator
Energy Saving ECO mode
Electronic temperature control, programmable between 80°C - 98°C
Comprehensive diagnostics system

Installation
As per instructions supplied.

Plumbing
Designed for direct connection to a potable cold water supply using the fittings supplied. An isolating valve should be installed between the supply and the heater. These wall mounted boilers have a choice of connection through rear or from beneath and require 2 bar incoming water pressure.

Electrical
To be connected to 230 volt 13 amp or 30 amp (6kW) supply.

Construction
Stainless steel or impact resistant thermoplastic case
Stainless steel heating chamber
Low voltage switching
2 safety cut-outs

Approvals
WRAS approved.

Maintenance
We offer repairs, maintenance, filter changes and servicing of all Instanta products.

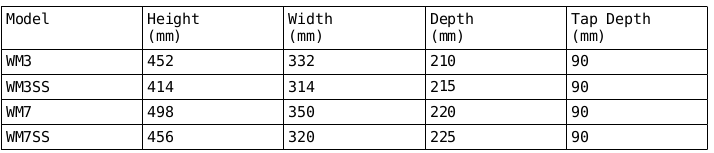

Dimensions

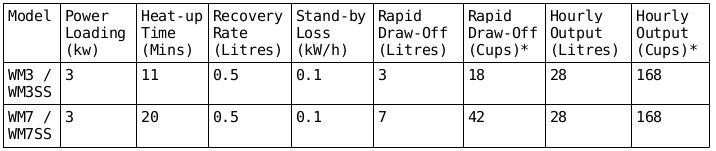

Technical Data
